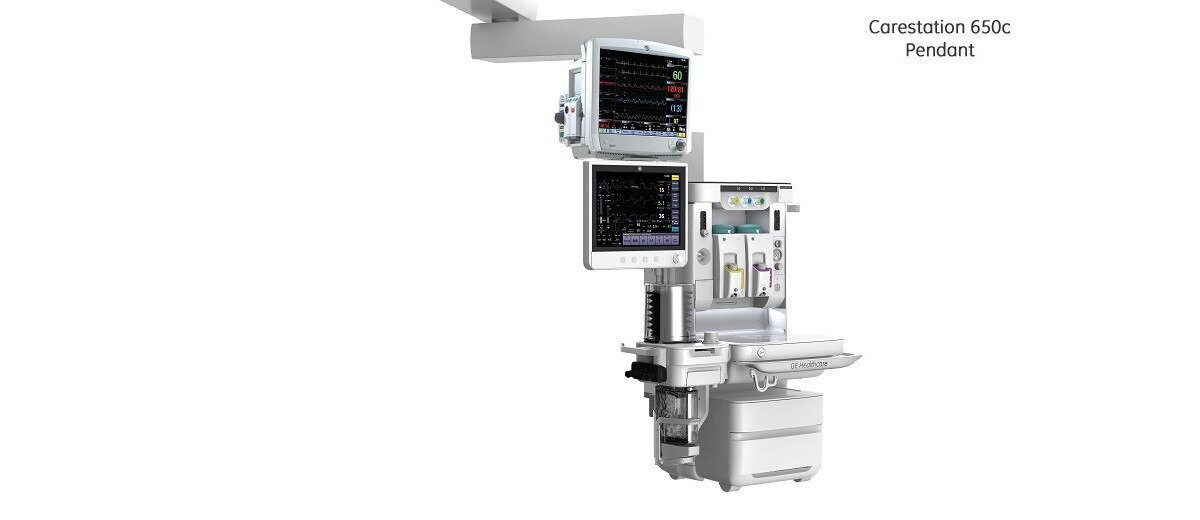

Carestation 650c

The Carestation 650c is a compact anesthesia system designed for pendent or wall mount — an ideal solution for induction rooms where floor space is limited.

With our newest Carestation, we left no stone unturned, turned conventional wisdom on its head and challenged ourselves to rethink everything. Carestation 600 Series….It's all within reach.

The Carestation 600 series is a compact, versatile, affordable and easy to use anesthesia platform that features a:

  • Sleek integrated design suited for constrained environments
  • Simple user interface for improved workflows
  • Scalable tools and technology for diverse patient acuities

To help clinicians deliver efficient, precise and reliable anesthesia care to solve today's toughest challenges.

Benefits

  • Advanced Tools

    *Only available on the Carestation 650 and 650c

    Automated procedures and time saving workflow tools

    Vital Capacity procedure

    • Automated bag “squeeze and hold”
    • Set PEEP to help sustain open lung 2,3

    Cycling procedure

    • Clinician-configured ventilation procedures
    • Programmable steps for increasing and decreasing PEEP levels

    Pause Gas Flow

    Simplifies temporary circuit disconnects. One button temporarily stops all gas flows and suspends alarms, agent delivery and ventilation so you can place all your focus on the patient.

    • Pause Gas feature helps prevent OR pollution
    • Stops gas & agent flow and silences all alarms for up to 1 minute

    Uncompromised Ventilation – Pediatric to Adult Low Tidal Volume Delivery

    • Tidal Volumes as low as 5 ml to the patient1
    • Sampling flow down to 120 ml/min
    • Lung Capacity and FRC
    • Compliance Measurement and Spirometry
    • Smart Agent Settings Design
    • Circuit Compliance Compensation ensures that what you set is what you get, precisely showing what is delivered to the patient and taking into account volume in the patient circuit.
    • Monitors and responds to changes in the patient’s airway pressure or respiratory efforts up to 250 times per second.
    • Precision volume and pressure delivery to the patient Y-piece, breath by breath, help reduce the challenges in managing pediatric patients.

    1. GE benchmark studies from 2011: GE Healthcare PCV to Tidal Volume Data Collection Test Results. Actual results may vary and are dependent on the patient. DOC0933949/DOC0970424

    2. Tusman, G., Bohm, S. H., Tempra, A., Melkun, F., Garcia, E., Turchetto, E., . . . Lachmann, B. (2003). Effects of recruitment maneuver on atelectasis in anesthetized children. Anesthesiology, 98(1), 14-22.

    3. Reinius, H., Jonsson, L., Gustafsson, S., Sundbom, M., Duvernoy, O., Pelosi, P., . . . Freden, F. (2009). Prevention of atelectasis in morbidly obese patients during general anesthesia and paralysis: a computerized tomography study. Anesthesiology, 111(5), 979-987.

Carestation Advantage

  • ecoFLOW

    *Only available on the Carestion 650 and 650c

    Anesthetic agents are the biggest ongoing expense associated with anesthesia units. Reducing fresh gas flow during maintenance of anesthesia is associated with several benefits. Enhanced preservation of temperature and humidity, cost savings through more efficient utilization of inhaled anesthetics, and environmental considerations are three key reasons to implement a low-flow friendly practice.1

    ecoFLOW is a display option that provides a graphical representation of oxygen flow and anesthetic agent use that has the potential to reduce agent costs when agent waste gases are reduced.2

    ecoFLOW Display: How it looks…how it works.

    • The "Fi25 O2" target is the target to maintain patient circuit oxygen at 25%
    • Maintain "O2 total" to be greater than "Fi25 O2 flow"
    • Adjust flow to help mitigate the risk of hypoxic delivery or avoid excess FGF delivery

    1. Brief review: theory and practice of minimal fresh gas flow anesthesia. Brattwall M, Warrén-Stomberg M, Hesselvik F, Jakobsson J. Can J Anaesth. 2012 Aug;59(8):785-97. doi: 10.1007/s12630-012-9736-2. Epub 2012 Jun 1. https://www.ncbi.nlm.nih.gov/pubmed/22653840

    2. ECRI 2011 Health Product Comparison System: Anesthesia Units https://www.ecri.org/ES/Documents/Anesthesia Units.pdf



Tour

  • Pendant Mount Configuration option

  • Durable work surfaces and handles

  • Two storage drawers

  • Supports a variety of patient monitor mounts (Configuration shown features CARESCAPE Monitor B650)

  • 15" color ventilator display

  • Compact Breathing System (CBS-600)

  • Easy change absorbent canister

  • Control dials with digital flow display

  • Integrated CARESCAPE Respiratory Module

  • Tec* 7 vaporizers: planned factory service free
